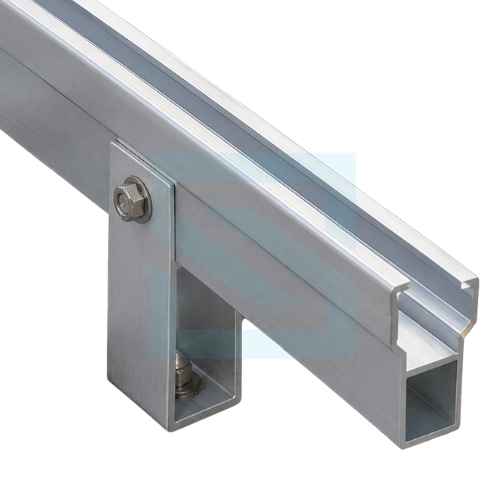

The U Type Long Rail Structure – 2 kW Kit is a complete rooftop solar mounting solution engineered for the safe and reliable installation of 2 kW solar PV systems. Manufactured from high-strength Aluminium 6063-T6, the structure offers an excellent strength-to-weight ratio, superior corrosion resistance, and long-lasting performance in all weather conditions.
Designed as per relevant IS Standards, the kit includes all essential mounting components, aluminium rails, module clamps, base supports, stainless steel fasteners, and installation accessories required for a hassle-free installation. Its lightweight design enables faster installation while ensuring maximum structural stability.
Suitable for residential, commercial, and industrial rooftop applications, the U Type Long Rail Structure is compatible with multiple roof types and supports solar modules with 30 mm, 33 mm, 35 mm, and 40 mm frame thicknesses.
| Product Name | U Type Long Rail Structure – 2 kW Kit |
| Material | Aluminium 6063-T6 |
| Structure Type | U Type Long Rail |
| System Capacity | 2 kW |
| Rail Type | Long Rail |
| Available Heights | 100 mm & 150 mm |
| Panel Compatibility | 30 mm, 33 mm, 35 mm & 40 mm Framed Solar Modules |
| Fastener Material | SS304 Stainless Steel |
| Installation | Standard Tool Installation |
| Application | Residential, Commercial & Industrial Rooftop Solar |
| Design Standard | Designed as per IS Standards |
| Finish | Corrosion Resistant |
| Roof Compatibility | RCC, Metal Sheet & Other Compatible Roof Types |
| Warranty | 25 Years |
| Component | Quantity |
|---|---|
| Rail Nut – M8 | 10 Nos. |
| Rail Connector G2 LW19 T1.8 L150 AL 6063-T6 | 2 Nos. |
| LR2 U Base Support L40 | 10 Nos. |
| Allen Bolt M8 × 20 (SS304/A2) | 4 Nos. |
| Allen Bolt M8 × 25 (SS304/A2) | 6 Nos. |
| Plain Washer M8 (SS304/A2) | 10 Nos. |
| Spring Washer M8 (SS304/A2) | 10 Nos. |
| EPDM Tape (3 mm × 40 mm × 5 m) | 1 Roll |
| Self Drilling Screw 12 × 70 RX (Epoxy Coated) | 10 Nos. |
| Self Drilling Screw 12 × 45 (Epoxy Coated) | 28 Nos. |
| End Clamp (Z Type) – 30 mm / 33 mm / 35 mm / 40 mm | 4 Nos. |
| Mid Clamp (U Type) – 30 mm / 35 mm / 40 mm (AL 6063-T6) | 6 Nos. |
| Long Rail Lite L2450 | 4 Nos. |
| Total Components | 105 |
It is a complete rooftop solar mounting kit designed for the secure installation of 2 kW solar PV systems.
The structure is manufactured from premium Aluminium 6063-T6 with SS304 stainless steel fasteners for superior strength and corrosion resistance.
The kit supports 30 mm, 33 mm, 35 mm, and 40 mm framed solar modules.
Yes. The lightweight design allows quick and easy installation using standard tools.
The structure is suitable for RCC roofs, metal sheet roofs, and other compatible rooftop applications.
The U Type Long Rail Structure is available in 100 mm and 150 mm height options.
Yes. The aluminium profile and SS304 fasteners provide excellent corrosion resistance, making it ideal for long-term outdoor use.
Yes. The U Type Long Rail Structure is backed by a 25-year warranty.
Yes. It is suitable for residential, commercial, and industrial rooftop solar projects.
Yes. The kit includes rails, supports, clamps, fasteners, and all essential mounting accessories required for installation.
