U Type Long Rail Structure – 1 kW Kit (For 2 Panel)
U Type Long Rail Structure – 1 kW Kit (For 2 Panel)

U Type Long Rail Structure – 1 kW Kit (For 2 Panel)

Rs. 3,793.00
Rs. 3,793.00
Please hurry! Only 0 left in stock
Subtotal: Rs. 3,793.00
10 customers are viewing this product
U Type Long Rail Structure – 1 kW Kit (For 2 Panel)

U Type Long Rail Structure – 1 kW Kit (For 2 Panel)

Rs. 3,793.00
U Type Long Rail Structure – 1 kW Kit (For 2 Panel)
U Type Long Rail Structure – 1 kW Kit (For 2 Panel)

U Type Long Rail Structure – 1 kW Kit (For 2 Panel)

Rs. 3,793.00
Description

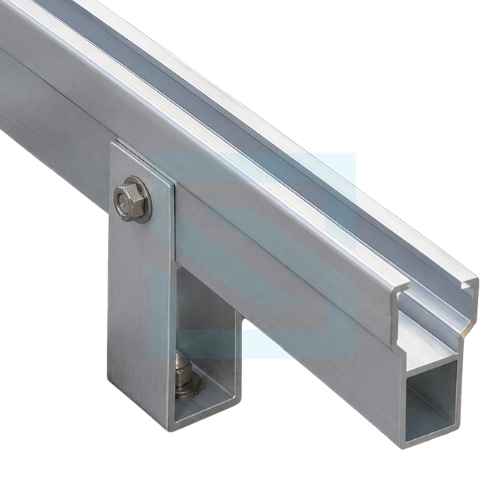

The U Type Long Rail – 1 kW Solar Mounting Kit is a complete rooftop mounting solution designed for secure, durable, and efficient installation of solar PV modules. Manufactured from high-strength Aluminium 6063-T6, the system offers excellent corrosion resistance, lightweight construction, and long service life.

This kit includes all essential mounting components, stainless steel fasteners, EPDM sealing tape, clamps, rails, and accessories required for a standard 1 kW rooftop solar installation. It is suitable for residential, commercial, and industrial rooftop projects.

Key Features

  • Complete mounting kit for 1 kW Solar PV System
  • High-strength Aluminium 6063-T6 construction
  • Premium SS304/A2 stainless steel fasteners
  • Corrosion-resistant and weatherproof
  • Quick and easy installation
  • Lightweight yet robust design
  • Compatible with 30mm, 33mm, 35mm & 40mm framed solar modules
  • Long service life with minimal maintenance
Specification

Product Specifications

Product NameU Type Long Rail - 1 kW Kit
MaterialAluminium 6063-T6
Rail TypeU Type Long Rail
Available Heights100 mm & 150 mm
Panel Compatibility30 mm / 33 mm / 35 mm / 40 mm Frame Modules
Fastener MaterialSS304/A2 Stainless Steel
ApplicationResidential, Commercial & Industrial Rooftop Solar
InstallationStandard Tool Installation
Warranty25 Years
Read More
Kit Content

Kit Includes

Product Description Quantity
Rail Nut – M8 6
LR2 U Base Support L40 6
Allen Bolt M8 × 20 SS304/A2 4
Allen Bolt M8 × 25 SS304/A2 2
Plain Washer M8 SS304/A2 6
Spring Washer M8 SS304/A2 6
EPDM Tape 3 mm × 40 mm × 5 m 1
Self Drilling Screw 12 × 70 RX (Epoxy Coated) 6
Self Drilling Screw 12 × 45 (Epoxy Coated) 12
End Clamp (U Type) – 30 / 33 / 35 / 40 mm 4
Mid Clamp (U Type) – 30 / 33 / 35 / 40 mm Aluminium 6063-T6 2
Long Rail Lite L2450 2
Total Components 57
FAQ

1. What is the U Type Long Rail used for?

It is designed for securely mounting solar PV modules on rooftop solar installations.

2. Which solar panel frame sizes are supported?

The system is compatible with 30 mm, 33 mm, 35 mm, and 40 mm framed solar modules.

3. What material is the rail made from?

The rail is manufactured from high-strength Aluminium 6063-T6 for durability and corrosion resistance.

4. Is the installation easy?

Yes. The system is designed for quick installation using standard tools.

5. What roof types are compatible?

The U Type Long Rail is compatible with multiple rooftop applications, including RCC and metal roofs using suitable mounting accessories.

6. What heights are available?

The rail is available in 100 mm and 150 mm height options.

7. Does the product come with a warranty?

Yes. The U Type Long Rail is backed by a 25-year warranty.

8. Is it suitable for outdoor use?

Yes. Its corrosion-resistant aluminium construction is designed for long-term outdoor performance.
×
