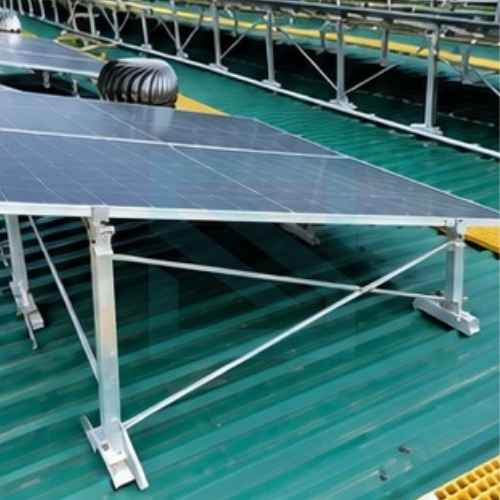

The TILT RACK E-W & N-S – GP is a reliable and installation-friendly solar mounting solution designed for rooftop solar applications. This 2.4 kWp configuration is designed to accommodate 4 solar panels of 600 Wp each in a 4×1 layout.
Designed for both East-West (E-W) and North-South (N-S) mounting orientations, this GP configuration combines GP-specific leg profiles and base supports with copper stabilizers, aluminium U clamps and the required mounting hardware.
The complete kit includes structural profiles, stabilizers, rails, Z and U clamps, rail connectors, grip plates, EPDM tape and fastening hardware required for the specified 4-panel configuration.
| Product | TILT RACK E-W & N-S – GP |
| System Capacity | 2.4 kWp / 2400 Wp |
| Panel Layout | 4 × 1 |
| Module Count | 4 Panels |
| Module Wattage | 600 Wp per module |
| Total Module Capacity | 2400 Wp / 2.4 kWp |
| Panel Orientation | E-W & N-S |
| System Type | GP |
| Leg Profiles | T1-L680 – GP & T1-L320 – GP |
| Stabilizer | CU 60×21×21×0.80, L1650 & L1450 |
| End Clamp | Z Clamp – 35 mm |
| Mid Clamp | U Clamp |
| Rail Length | 2450 mm |
| Rail Connector | L80 |
| Fastener Material | SS304/A2 for specified fasteners |
Note: Final installation suitability should be verified according to module dimensions, roof conditions, structural requirements, wind loads and project-specific design requirements.
| Component | Quantity |
|---|---|
| LEG PROFILE T1-L680 – GP | 5 |
| LEG PROFILE T1-L320 – GP | 5 |
| TR BASE SUPPORT 6H – GP | 10 |
| STABILIZER CU 60x21x21x0.80 L1650 | 7 |
| STABILIZER CU 60x21x21x0.80 L1450 | 10 |
| Z CLAMP 35 | 4 |
| U CLAMP | 6 |
| RAIL NUT (M8) | 10 |
| SPRING WASHER M8 SS304/A2 | 10 |
| PLAIN WASHER M8 SS304/A2 | 70 |
| ALLEN BOLT M8x70 | 30 |
| ALLEN BOLT M8x20 SS304/A2 | 10 |
| RIVET (ø4.8 x 19mm) | 40 |
| HEX NUT (M8) | 30 |
| RX-32 SCREW | 52 |
| EPDM TAPE (W-30mm x T-1mm x L-5m) | 0.23 |
| RAIL LENGTH 2450mm | 4 |
| L-ANGLE 55 – D9 | 10 |
| CLAMP SPACER – PVC | 10 |
| RAIL CONNECTOR L80 | 2 |
| GRIP PLATE 3TxL90 | 2 |
This configuration is designed for 4 solar panels of 600 Wp each, providing a total capacity of 2.4 kWp (2400 Wp).
The 2.4 kW configuration supports 4 solar modules arranged in a 4×1 layout.
The system is designed for both East-West (E-W) and North-South (N-S) mounting orientations.
GP refers to the specific GP configuration, which includes the specified GP leg profiles and GP base supports supplied with the kit.
The kit includes 4 Z Clamps 35 and 6 U Clamps for securing the solar modules.
The kit includes CU stabilizers measuring 60×21×21×0.80 in L1650 and L1450 lengths.
Yes. The kit includes 4 × 2450 mm rails and 2 × L80 rail connectors.
Yes. The kit includes Allen bolts, rail nuts, washers, hex nuts, rivets, RX-32 screws, EPDM tape, L-angles, clamp spacers and other specified installation components.
Yes. The kit includes EPDM Tape (W-30mm × T-1mm × L-5m) with the specified quantity.
This specific configuration is calculated for 4 × 600 Wp modules. For different module dimensions or capacities, compatibility should be verified before ordering.
