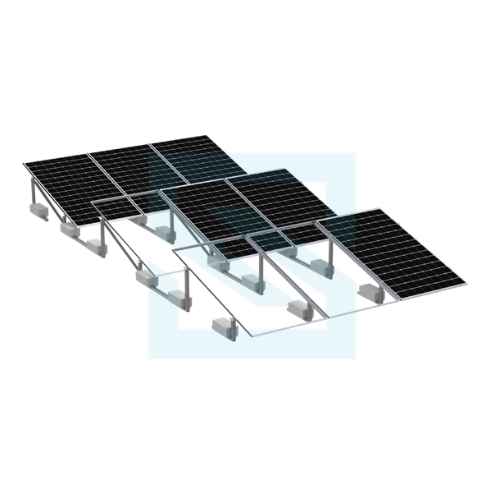

The Smart Rack Aluminium Structure – 6.0 kWp is a lightweight, durable and reliable solar mounting solution designed for a 10-panel layout in a 5 × 2 configuration. It accommodates 10 solar modules of 600 Wp each, providing a total installed capacity of 6.0 kWp.
Manufactured using high-quality aluminium structural components and SS304/A2 stainless-steel fastening hardware, the Smart Rack combines strength, corrosion resistance and ease of installation. Its ballast-based design provides a practical rooftop mounting solution while minimizing the need for roof penetration.
The complete kit includes aluminium leg profiles, SR base supports, short racks, clamping plates, ballast-T brackets, stabilizers, end and mid clamps, fastening hardware, PVC spacers and aluminium pop rivets required for the specified 10-panel configuration.
| Parameter | Specification |
|---|---|
| Product | Smart Rack Aluminium Structure – 6.0 kWp |
| Panel Layout | 10 Panels |
| Panel Orientation | 5 × 2 |
| Module Count | 10 Modules |
| Module Wattage | 600 Wp per module |
| Total Capacity | 6.0 kWp |
| Primary Structural Material | Aluminium |
| Aluminium Grade | AL 6063-T6 |
| Base Supports | SR Base Support EL600 / ML1580 |
| Leg Profile | T1-L320 / T1-L680 |
| Short Rack | PT-41 L100 |
| End Clamp | Z Type – 35 mm |
| Mid Clamp | U Type – 30 mm, AL 6063-T6 |
| Ballast Bracket | Ballast-T Bracket L150 |
| Stabilizer | LW19T1.8, AL 6063-T6 – L1650 / L1450 |
| Clamp Spacer | PVC |
| Fastener Material | SS304 / A2 and Galvanised |
| Description | Total Qty |
|---|---|
| Leg Profile T1-L320 | 12 |
| Leg Profile T1-L680 | 12 |
| SR Base Support EL600 | 12 |
| SR Base Support ML1580 | 6 |
| Clamping Plate 15D | 24 |
| Allen Bolt M8 × 25 SS304/A2 | 24 |
| Allen Bolt M8 × 70 SS304/A2 | 72 |
| Plain Washer M8 SS304/A2 | 168 |
| Hex Nut M8 SS304/A2 | 72 |
| Spring Washer M8 SS304/A2 | 24 |
| Spring Nut M8 – Coated Galvanised | 24 |
| Short Rack PT-41 L100 | 24 |
| End Clamp (Z Type) – 35 mm | 8 |
| Mid Clamp (U Type) – 30 mm, AL 6063-T6 | 16 |
| Clamp Spacer – PVC | 24 |
| Ballast-T Bracket L150 | 48 |
| Pop Rivet 4.8 × 19 – Aluminium | 268 |
| Stabilizer LW19T1.8 L1650 – AL 6063-T6 | 12 |
| Stabilizer LW19T1.8 L1450 – AL 6063-T6 | 19 |
The Smart Rack 6.0 kWp configuration is designed to accommodate 10 solar modules in a 5 × 2 layout.
It is designed for 10 × 600 Wp solar modules, providing a total capacity of 6.0 kWp.
The structure uses aluminium components, including specified AL 6063-T6 profiles and stabilizers, along with SS304/A2 stainless-steel fastening hardware.
Yes. The kit includes 48 Ballast-T Brackets L150 as part of the ballast-based mounting arrangement.
The kit includes 12 SR Base Supports EL600 and 6 SR Base Supports ML1580.
The kit includes 8 Z-Type 35 mm end clamps and 16 U-Type 30 mm mid clamps.
The kit includes aluminium LW19T1.8 stabilizers in L1650 and L1450 lengths.
Yes. Its lightweight aluminium and ballast-based design makes it suitable for appropriate rooftop solar applications, subject to site-specific structural, wind-load and ballast requirements.
Yes. The kit includes the listed leg profiles, base supports, short racks, clamping plates, clamps, ballast brackets, stabilizers, spacers, pop rivets and fastening hardware for the specified 10-panel configuration.
