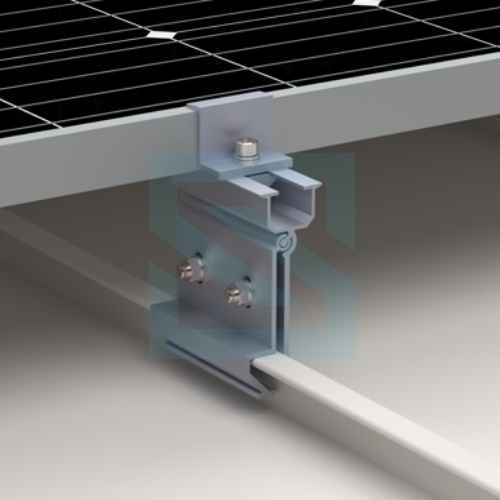

The SINGLE LOK H120-SOCKET 100L with End Clamp is a compact seam-roof solar mounting solution designed for compatible standing-seam metal roof applications.
The kit combines a Single Lok H120-Socket 100L, Single Lok-Plug 100L, Z-Type End Clamp and stainless-steel mounting hardware. It provides a practical connection for securing the edge of framed solar PV modules on suitable seam-roof profiles.
| Parameter | Specification |
|---|---|
| Product Type | Seam Roof Clamp with End Clamp |
| Lok Type | Single Lok H120-Socket 100L + Single Lok-Plug 100L |
| Module Clamp | End Clamp (Z Type) |
| Panel Frame Compatibility | 30mm / 33mm / 35mm / 40mm |
| Fastener Material | SS304/A2 |
| Sealing Material | EPDM Rubber |
| Application | Compatible Seam Roof / Metal Roof |
| Component | Quantity |
|---|---|
| Single Lok H120-Socket 100L | 1 |
| Single Lok-Plug 100L | 1 |
| Allen Bolt M8x20 SS304/A2 | 1 |
| Allen Bolt M8x25 SS304/A2 | 2 |
| Rail Nut M8 | 1 |
| Plain Washer M8 SS304/A2 | 3 |
| Spring Washer M8 SS304/A2 | 3 |
| End Clamp (Z Type) - 30/33/35/40mm | 1 |
| EPDM Rubber 120mm x 80mm x 1.5mm | 1 |
It is a seam-roof mounting component used with the corresponding Single Lok Plug and panel end clamp for compatible solar PV installations.
The supplied Z-Type End Clamp is specified for 30mm, 33mm, 35mm and 40mm solar panel frame heights.
The kit contains SS304/A2 stainless-steel Allen bolts, plain washers and spring washers.
Yes. One EPDM Rubber piece measuring 120mm x 80mm x 1.5mm is included.
This is a specific seam-roof mounting kit with an end clamp and the components listed above. Additional components may be required depending on the complete solar mounting design and roof profile.
