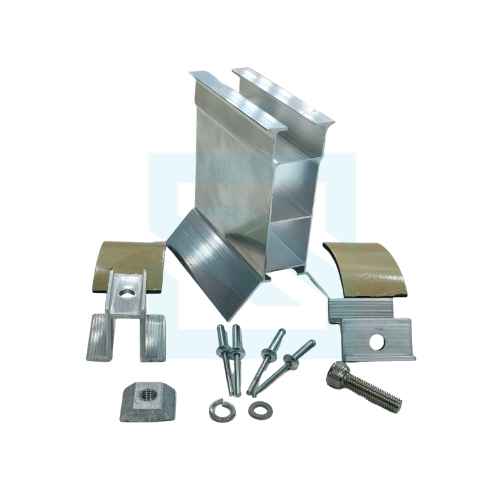

The SHORT RACK LS-100 F75 W35 L100 is a compact Landscape Solar Mounting Rail designed for suitable rooftop solar PV applications. It provides a practical mounting solution for landscape-oriented solar modules.
This configuration features a 75 mm base width (F75) and 35 mm rib fitment (W35). The supplied U-Type Mid Clamp is specified for solar module frames of 30 mm, 35 mm and 40 mm.
The kit comes with the required short rail, rivets, Mid Clamp, M8 hardware, washers and EPDM tape for the mounting assembly.
| Parameter | Specification |
|---|---|
| Product | SHORT RACK LS-100 F75 W35 L100 |
| Type | Landscape Short Rail with Mid Clamp |
| Orientation | Landscape |
| Base Width (F) | 75 mm |
| Rib Fitment (W) | 35 mm |
| Rail Length (L) | 100 mm |
| Mid Clamp | U-Type, AL 6063-T6 |
| Module Frame Compatibility | 30 / 35 / 40 mm |
| Rail Nut | M8 |
| Fastener | M8×20 SS304/A2 |
| Component | Specification | Qty/Set |
|---|---|---|
| Short Rack LS-100 F75 W35 | L100 | 1 |
| Rivet (TF) | 6.4×23 AL | 4 |
| Mid Clamp U-Type | 30/35/40 mm AL 6063-T6 | 1 |
| Rail Nut | M8 | 1 |
| Allen Bolt | M8×20 SS304/A2 | 1 |
| Plain Washer | M8 SS304/A2 | 1 |
| Spring Washer | M8 SS304/A2 | 1 |
| EPDM Tape | 3mm×40mm×5m | 1 |
It is a landscape short rail mounting kit featuring a 75 mm base width, 35 mm rib fitment and 100 mm rail length.
F75 represents the 75 mm base width of the short rack.
W35 represents the 35 mm rib fitment.
Yes. One U-Type Mid Clamp is included in each kit.
The supplied U-Type Mid Clamp is specified for 30 mm, 35 mm and 40 mm solar module frames.
The kit includes the short rail, 4 aluminium rivets, U-Type Mid Clamp, M8 Rail Nut, M8×20 SS304/A2 Allen Bolt, washers and EPDM tape.
