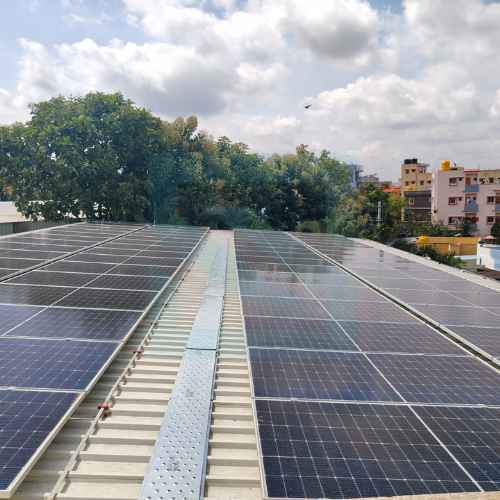

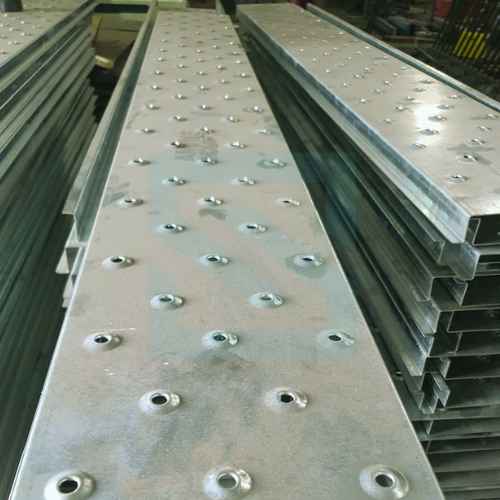

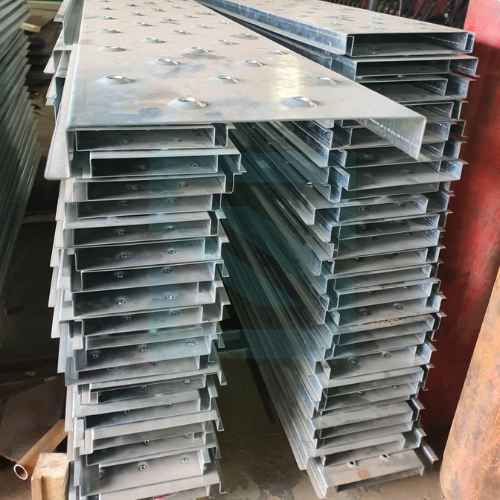

The GI Horizontal Walkway – 10 Meter is engineered to provide a safe and durable access path for maintenance personnel working on metal roof solar installations. Manufactured using high-quality pre-galvanized steel, the walkway protects the roof from accidental damage while ensuring secure footing during installation, cleaning, and maintenance activities.
The walkway offers excellent corrosion resistance, high load-bearing capacity, and long service life, making it suitable for commercial, industrial, and utility-scale rooftop solar projects. Designed for quick installation, the kit includes all essential mounting accessories for fast and reliable fixing.
| Parameter | Specification |
|---|---|
| Product | GI Horizontal Walkway Kit |
| Total Walkway Length | 10 Meter |
| Walkway Material | Pre-Galvanized Steel |
| Walkway Size | 300 × 30 × 2500 mm |
| Installation Type | Horizontal Metal Roof Installation |
| Roof Type | Metal Roof |
| Bracket Material | GI L-Angle |
| Fastener Material | SS304 Stainless Steel |
| Corrosion Protection | Pre-Galvanized Finish |
| Application | Solar Rooftop Maintenance Access |
| Installation | Fast & Easy |
| Maintenance | Low |
| Warranty | 10 Years* |
| Sr. No. | Product Description | Quantity |
|---|---|---|
| 1 | L-Angle (L150) (25×25×2 mm) | 6 Nos |
| 2 | POP Rivet 4.8×19 Aluminium | 40 Nos |
| 3 | Self Drilling Screw 12×32 RX (Epoxy Coated) | 24 Nos |
| 4 | Pre-Galvanized Walkway (300×30×2500 mm) | 4 Nos |
| Total Components | 74 | |
It provides a safe walking path for technicians during installation, inspection, cleaning, and maintenance of rooftop solar systems.
This kit is designed for horizontal installation on metal roofs.
The walkway is manufactured from high-quality pre-galvanized steel for excellent durability and corrosion resistance.
Yes. The kit includes all required brackets, screws, rivets, and mounting accessories.
No. When installed correctly, it provides safe access while helping protect the roof from maintenance-related damage.
Yes. The pre-galvanized finish provides excellent protection against rust and outdoor weather conditions.
Yes. It is ideal for commercial, industrial, warehouse, and factory rooftop solar installations.
Yes. Multiple kits can be connected to create longer maintenance pathways.
The walkway requires minimal maintenance. Periodic inspection of fasteners is recommended.
SRPL Group offers a 10-year warranty against manufacturing defects, subject to standard warranty terms and conditions.
