The GI Safety Line for Trapezoidal Roof – 30 Meter Kit is a permanent horizontal lifeline system designed to provide reliable fall protection for personnel working on trapezoidal metal roofs. Manufactured using 8 mm SS316L stainless steel wire rope with HDGI (Hot Dip Galvanized Iron) anchorage posts, the system offers excellent structural strength, corrosion resistance, and long-term durability.
Designed in accordance with EN 795 Type C standards, this system allows workers to move safely along the roof while remaining continuously connected. It is an ideal solution for rooftop solar installations, industrial buildings, warehouses, factories, and maintenance applications.
| Product Name | GI Safety Line for Trapezoidal Roof – 30 Meter Kit |
|---|---|
| Roof Type | Trapezoidal Metal Roof |
| Total Lifeline Length | 30 Meter |
| Wire Rope | 8 mm SS316L Stainless Steel (7×19 Construction) |
| Wire Rope Tensile Strength | 1770 N/mm² |
| Breaking Strength | 4.2 Ton |
| Anchorage Material | HDGI (Hot Dip Galvanized Iron) |
| Shock Absorber | Spring Type SS316L |
| Tensioner | Swage to Jaw Tensioner |
| End Posts | 2 Nos. |
| Intermediate Posts | 2 Nos. |
| Installation Standard | EN 795 Type C |
| Installation Method | Mechanical Fastening with Rivets & Bolts |
| Applications | Solar Rooftops, Warehouses, Industrial Buildings, Factories & Maintenance Walkways |
| Corrosion Protection | HDGI Structure with SS316L Wire Rope & Stainless Steel Hardware |
| Sr. No. | Product Description | Quantity |
|---|---|---|
| 1 |
SS 8mm Wire Rope Construction: 7×19 Tensile Strength: 1770 N/mm² Breaking Strength: 4.2 Ton Material: SS316L |
30 Mtr |
| 2 |
Roof Top Anchorage End Post Material: HDGI Suitable for Crest Size up to 350 mm Size: 600×350×150 mm Complies with EN 795 Type C SS316L Extremity Plate & SS304 Hardware Aluminium Rivets M7.7×27 mm – 18 Nos. Hex Bolt M10×25 with Nut, FW & LW – 04 Sets |
2 Nos. |
| 3 |
Roof Top Anchorage Intermediate Post Material: HDGI Size: 600×350×150 mm Suitable for Crest Size up to 350 mm Complies with EN 795 Type C SS316L Intermediate Bracket Aluminium Rivets M7.7×27 mm – 12 Nos. Hex Bolt M10×25 with Nut, FW & LW – 05 Sets |
2 Nos. |
| 4 |
Roof Top Anchorage Corner Post Material: HDGI Proof Load: 10 kN Suitable for Crest Size up to 350 mm Complies with EN 795 Type C SS316L Corner Bracket Aluminium Rivets M7.7×27 mm – 12 Nos. |
0 Nos. |
| 5 |
Spring Type Shock Absorber Material: SS316L Tensile Load: 7.5 kN/mm² |
1 No. |
| 6 |
Swage to Jaw Tensioner (7600-002) Material: SS316 Dynamic Load: 15 kN Opening Size: 400 mm |
1 No. |
| 7 |
Cable Extremity Material: Stainless Steel 304L Thimble: 01 No. Suitable for 8 mm Rope Proof Load: 15 kN |
2 Nos. |
| Total Components | 38 | |
The system provides continuous fall protection for workers performing installation, inspection, and maintenance on trapezoidal metal roofs.
It is specifically designed for trapezoidal metal roofing systems.
The anchorage posts are manufactured from Hot Dip Galvanized Iron (HDGI), while the wire rope is SS316L stainless steel.
The system is designed in accordance with EN 795 Type C horizontal lifeline standards.
Yes. The combination of HDGI components and SS316L stainless steel wire rope provides excellent corrosion resistance for outdoor applications.
Yes. It is ideal for rooftop solar installations, warehouses, industrial facilities, and commercial buildings.

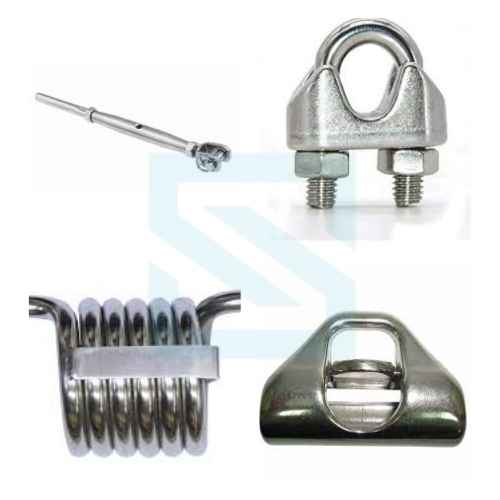

Yes. The kit includes wire rope, anchorage posts, shock absorber, tensioner, cable extremities, and installation hardware.
Yes. Additional compatible lifeline components can be added to extend the overall system length when required.
