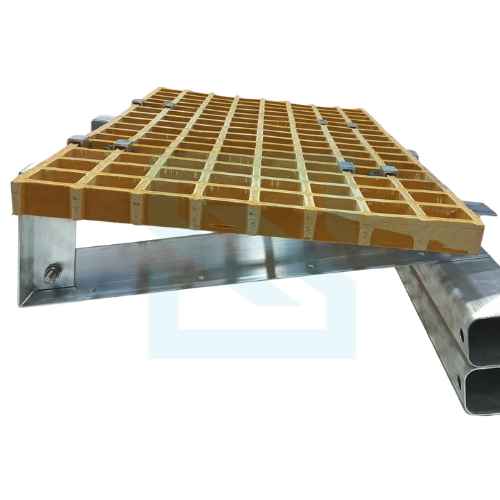

The FRP Angular Walkway – 3.66 Meter is a lightweight, corrosion-resistant maintenance walkway designed for safe access across solar rooftops. It is ideal for crossing angular roof sections while protecting the roof surface from damage during maintenance activities.
Manufactured using premium quality FRP grating with high-strength aluminium support brackets and SS304 fasteners, the system offers excellent mechanical strength, anti-slip performance, UV resistance, fire retardant properties, and long service life. The non-penetrative design enables quick installation while ensuring reliable performance in harsh outdoor environments.
Suitable for commercial, industrial, and utility-scale rooftop solar projects, the FRP Angular Walkway provides a safe, maintenance-free access solution with superior durability and weather resistance.
| Specification | Details |
|---|---|
| Product Name | FRP Angular Walkway |
| Walkway Length | 3.66 Meter |
| Walkway Width | 310 mm |
| Grating Material | FRP (Fiber Reinforced Plastic) |
| Bracket Material | Aluminium |
| Fastener Material | SS304 Stainless Steel |
| Surface Finish | Anti-Slip |
| Installation Type | Roof Mounted |
| Roof Type | Metal Sheet Rooftop |
| Corrosion Resistance | Excellent |
| UV Resistance | Yes |
| Fire Retardant | Yes |
| Weather Resistance | Excellent |
| Maintenance | Maintenance Free |
| Installation | Quick & Easy |
| Warranty | 10 Years* |
| Component | Quantity |
|---|---|
| Base Bracket L400 | 4 Nos. |
| Angular Bracket L410 | 4 Nos. |
| Center Bracket L90 | 4 Nos. |
| M Clamps M5 | 8 Nos. |
| C-Clip (M6 Hole) | 4 Nos. |
| Allen Bolt M8 × 20 SS304/A2 | 12 Nos. |
| Allen Bolt M6 × 35 SS304/A2 | 4 Nos. |
| Hex Nut M6 SS304/A2 | 4 Nos. |
| Hex Nut M8 SS304/A2 | 12 Nos. |
| Plain Washer M6 SS304/A2 | 8 Nos. |
| Plain Washer M8 SS304/A2 | 12 Nos. |
| POP Rivet 4.8 × 19 Aluminium | 16 Nos. |
| EPDM Tape (3mm × 40mm × 5m) | 0.64 Roll |
| Self Drilling Screw 12 × 32 RX (Epoxy Coated) | 8 Nos. |
| FRP Grating 3.66m W310 | 1 No. |
| Total Components | 101.64 |
It provides safe access across angular roof sections for inspection and maintenance of rooftop solar systems.
Yes. It is designed to withstand UV exposure, rain, heat, corrosion, and harsh weather conditions.
The walkway uses high-strength FRP grating with aluminium brackets and SS304 stainless steel fasteners.
No. The system is designed for secure installation while minimizing damage to the roof surface.
Yes. The FRP grating features an anti-slip surface for enhanced safety during maintenance.
Yes. It is engineered to safely support maintenance personnel and routine inspection activities.
No. The FRP walkway is corrosion resistant and virtually maintenance free.
SRPL-GROUP provides a standard 10-year warranty against manufacturing defects, subject to terms and conditions.
