Description

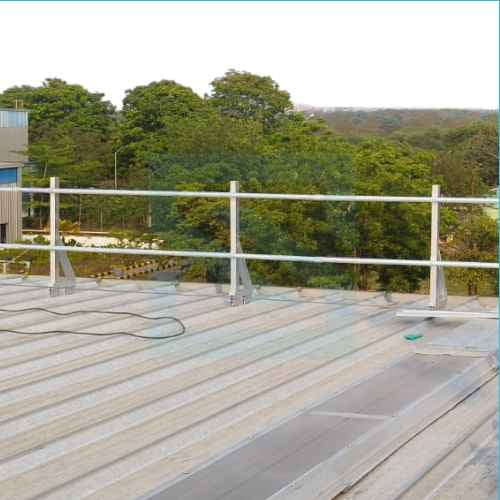

The Aluminium Vertical Handrail – 50 Meter is a durable, lightweight and corrosion-resistant safety railing system designed for rooftop solar installations, maintenance walkways, industrial platforms and elevated work areas. Manufactured using Aluminium 6063-T6 profiles with stainless-steel fasteners, it provides reliable edge protection with minimal maintenance requirements.

The modular construction allows quick installation and flexible configuration according to the site layout. It is an ideal safety solution for creating secure access and maintenance zones around rooftop solar projects.

Specification

Product Specifications

Product Aluminium Vertical Handrail
Total Length 50 Meter
Handrail Type Vertical Handrail
Material Aluminium 6063-T6
Leg Profile T4 – L1000
Handrail Bracing L500 Aluminium 6063-T6
Stabilizer Cleat LW38T2 L50 Aluminium 6063-T6
Stability Bracing LW38T2 L850 Aluminium 6063-T6
Pipe Union 80L
Saddle Clamp Ø42 mm
Fasteners SS304 / A2
POP Rivet 4.8 × 16 mm Aluminium
End Caps Plastic Square 50 × 50 mm & Plastic Round Ø40 mm
EPDM Tape W30 mm × T3 mm × L5 MTR
Self-Drilling Screw 12 × 32 mm RX, Epoxy Coated
Application Rooftop Solar, Walkways, Maintenance Areas & Industrial Platforms
Installation Modular / Bolt-Fixed Assembly
Read More
Kit Content

Kit Content

  • Base Support – HR – 50 Nos.
  • Leg Profile T4 – L1000 – 50 Nos.
  • Handrail Bracing L500 – Aluminium 6063-T6 – 50 Nos.
  • Pipe Union 80L – 57 Nos.
  • Ø42 mm Saddle Clamp – 100 Nos.
  • Plastic Square End Cap 50 × 50 mm – 50 Nos.
  • Plastic Round Cap Ø40 mm – 7 Nos.
  • Allen Bolt M8 × 70 SS304/A2 – 50 Nos.
  • Hex Nut M8 – A4 SS304/A4 – 50 Nos.
  • Plain Washer M8 – SS304/A2 – 100 Nos.
  • POP Rivet 4.8 × 16 mm – Aluminium – 1,200 Nos.
  • Handrail Stabilizer Cleat LW38T2 L50 – Aluminium 6063-T6 – 50 Nos.
  • Handrail Stability Bracing LW38T2 L850 – Aluminium 6063-T6 – 50 Nos.
  • EPDM Tape W30 mm × T3 mm × L5 MTR – 5 Nos.
  • Self-Drilling Screw 12 × 32 mm RX, Epoxy Coated – 483 Nos.
  • Handrail Pipe L-3000 – 53 Nos.
  • Handrail Pipe L-1000 – 7 Nos.

Estimated Total Components: 2,412 Nos.

Note: Kit quantities are based on the standard 50-meter configuration derived from the supplied handrail BOM. Actual quantities may vary depending on the site layout, bends, joints, end points and installation configuration.

FAQ

1. What is the total length of this Aluminium Vertical Handrail?

This standard kit is designed for a 50-meter handrail installation.

2. What material is used for the handrail?

The main profiles, legs and bracing components are manufactured using Aluminium 6063-T6, offering a good combination of strength, durability and corrosion resistance.

3. Where can this vertical handrail be used?

It is suitable for rooftop solar installations, maintenance walkways, industrial platforms, service areas and elevated work zones.

4. Is the handrail suitable for outdoor applications?

Yes. Aluminium provides good corrosion resistance and makes the system suitable for outdoor solar and industrial applications.

5. Does the 50-meter kit include fasteners?

Yes. The kit includes SS304/A2 bolts, nuts, washers, aluminium POP rivets and epoxy-coated self-drilling screws.

6. Can the handrail length be customized?

Yes. The modular system can be configured for different lengths and layouts according to the project and site requirements.

7. Can it be installed around rooftop solar walkways?

Yes. The system is suitable for creating a secure railing and maintenance zone around rooftop solar installations.

8. Is professional installation recommended?

Yes. Installation should be carried out by trained personnel to ensure proper alignment, fixing and overall safety of the handrail system.

×
